| Auto Tire Inflater |
|
|
|

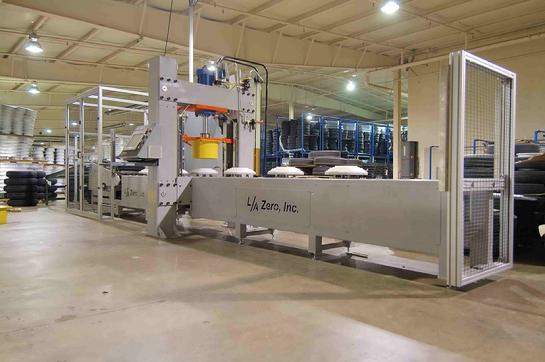

Our Automatic Tire Inflater can
iinflate 12" diameter to 18" diameter wheel assemblies up to 600 per
hour. Loading in automatic mode has a light curtain trigger that
activates the wheel index after wheels are placed on the conveyor
pallets. If tire is present in inflation station, then an inflation
cycle is intiated. an automatic uloading system on the end of the
machine unloads onto a gravity conveyor. A sensor on the gravity
conveyor stops the machine if full untill cleared.
|
All set up is via touch screen
interface, with the exception of the inflation heads which are changed
to match rim sizes. Inflation pressure is set and can be maintained up
to +/- 1 PSI. Production logging and recipe storage are also available
as options. Remote system maintence via the internet is also available.
|
 |

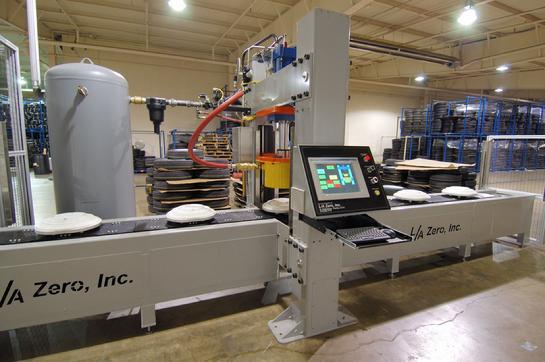

| HMI Interface |
|
|
Inflation is controlled by a unique hydraulic servo
controlled system with which set point accuracies of +/- 1 PSI can be
acheived.
|
 |
| Inflation Head |
|
|
 |

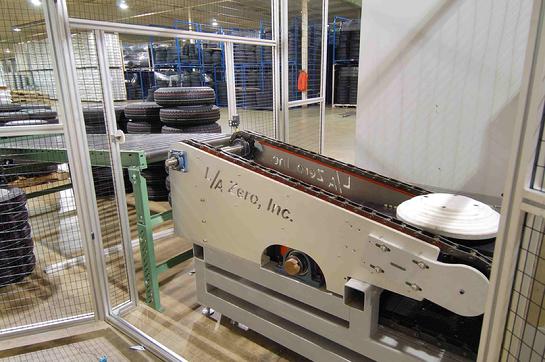

| Tire Unloading Station |
|
|
Modifications and or additional equipment can be supplied for your unique application. Please contact us in regards to your special requirements.
|
|
|
